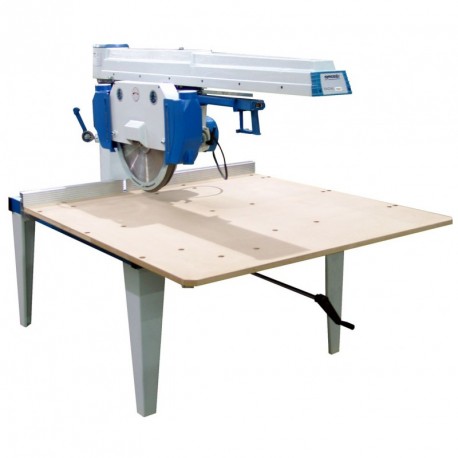

RADIAL 1250/7
20" Radial Arm Saw 7HP Motor 49 7/32" Cross Cut Capacity 59" Rip Capacity. Cast Iron Arm.
More info
These precision radial arm saws are very versatile, multi-purpose machines. This versatility is due to the possibility of swiveling and tilting both in the horizontal and vertical axis which makes the machines especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops. There is a wide range of accessories available to adapt the machine to each and every requirement.
Download literature
Download (599.86k)
Accessories
| description | price | |
|---|---|---|
| Dado Head Guard 12" x 2 3/8" |
$352.00 |
|
| Pneumatic Hold-Down Clamp |
$906.00 |
|
| Pneumatic Horizontal Clamp |
$1,157.00 |
|
| Flip Over Stop |
$106.00 |
|
| Pneumatic Flip over Stop |
$743.00 |
|
| Roller Table 6' X 24" RH |
$2,046.00 |
|
| Roller Table 6' X 24" LH |
$2,046.00 |
|
| 3' Aluminum Fence Extension |
$471.00 |
|
| 6' Aluminum Fence Extension |
$668.00 |
|
| Automatic Feed of the Head (RADIAL 1250) |
$4,881.00 |
Data sheet
| RADIAL 1250/7 | RADIAL 900/7 | |
|---|---|---|
| Max. Depth of cut 45 Deg. | 4 7/8" | 4 3/16" |
| Motor power | 7 | 7 |
| Saw bore | 1" | 1" |
| Saw Diameter | 20" | 18" |
| Arbor speed RPM | 3400 | 3200 |
| Bevel positive stops | 0-45 | 0-45 |
| Cross cut capacity | 49 7/32" | 35 1/2" |
| Table Size | 68"x44" | 47"x39" |
| Max. dado capacity | 1 3/4" | 1 1/2" |
| Max. Depth of cut -90 | 6 7/8" | 5 7/8" |
| Miter positive stops | 45-0-45 | 45-0-45 |
| Overall dimensions | 80"x55" | 59"x48" |
| Ripping capacity | 59" | 43 5/16" |
| Shipping Weight Lbs. | 1078 | 800 |
| Crated Dimensions | 79"x19"x55" | 63"x19"x43" |
