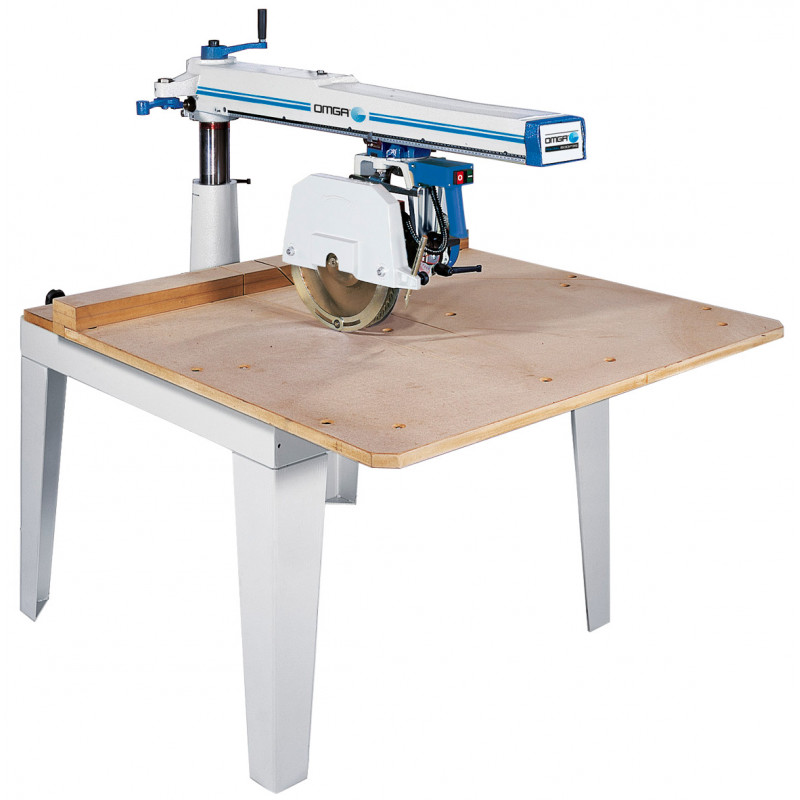

RADIAL 600 P3S
14" Radial Arm Saw 5HP Motor 24" Cross Cut Capacity 32 5/16" Rip Capacity. Cast Iron Arm.
More info

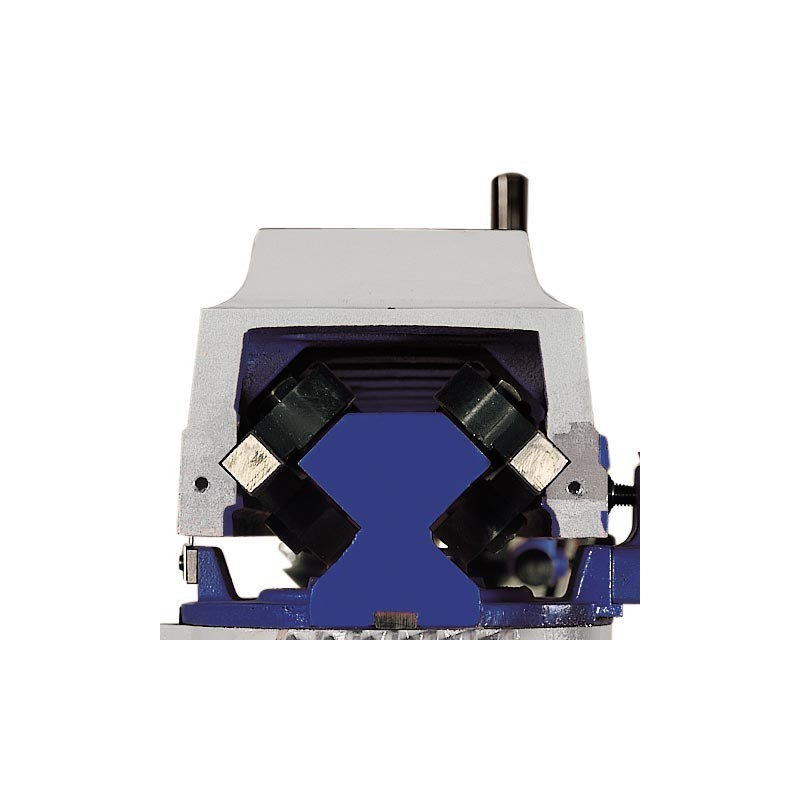

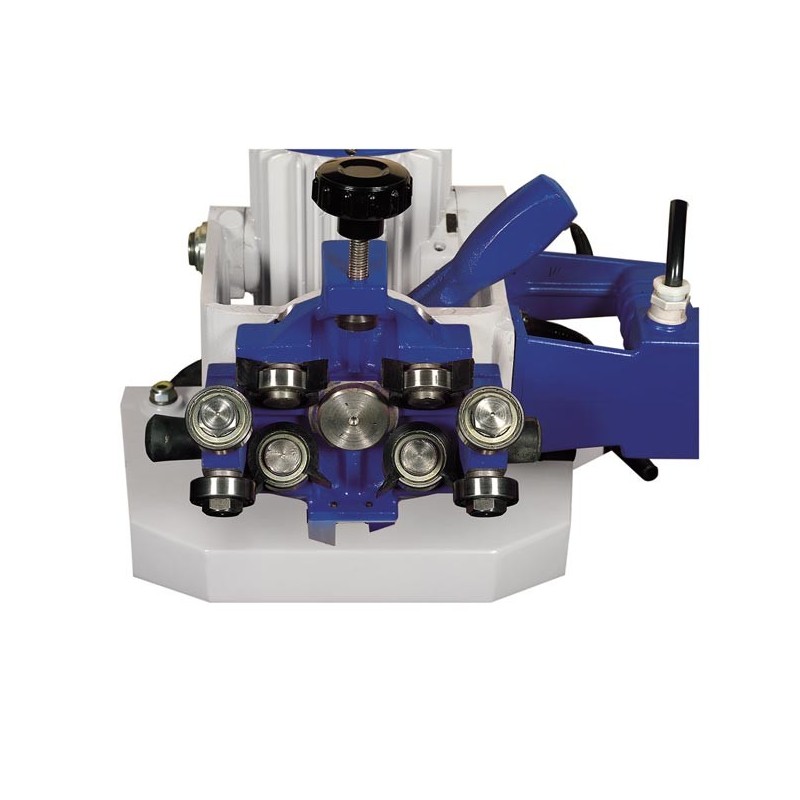

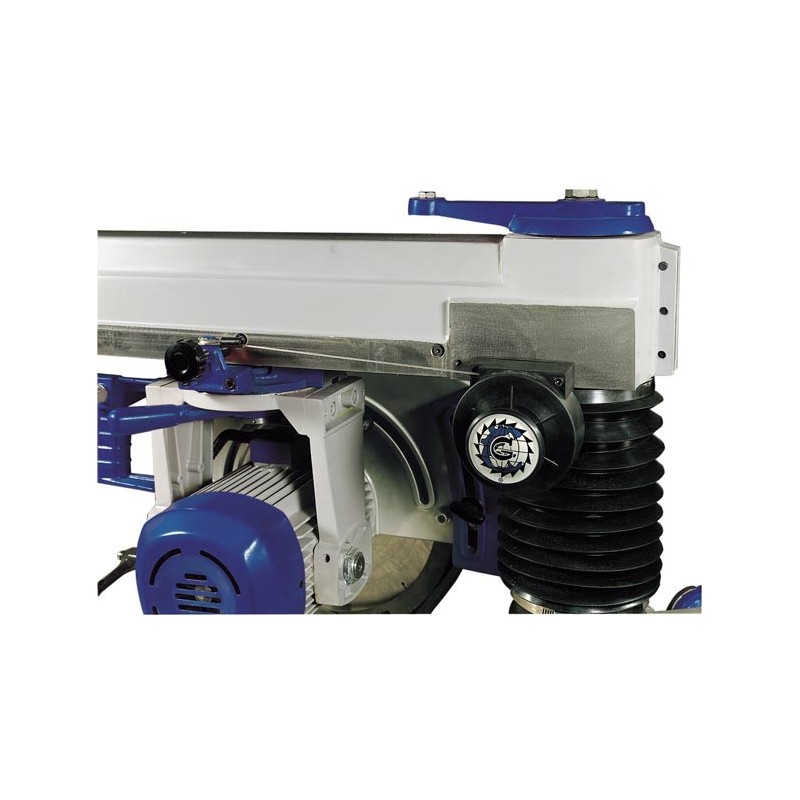

The Saw carriage is fitted with 8 bearing and runs on inserted steel tracks. The locking is self-centering at the main angle positions of the arm, the motor and the carriage, and all the intermediate angles can be locked manually. The unit is provided with standard overload protection with no-volt coil, automatic head reversal and motor brake.
Download literature
Download (599.86k)
Accessories
| description | price | |
|---|---|---|
| Dado Head Guard 12" x 2 3/8" |
$352.00 |
|
| Pneumatic Horizontal Clamp |
$1,157.00 |
|
| Roller Table 6' X 24" RH |
$2,046.00 |
|
| Roller Table 6' X 24" LH |
$2,046.00 |
|
| 14" ATB Saw Blade w/Keyway |
$272.00 |
|
| Automatic Feed of the Head (RADIAL 600 P3S) |
$4,550.00 |
Data sheet
| Max. Depth of cut 45 Deg. | 3 3/16" |
| Motor power | 5 |
| Arbor speed RPM | 3200 |
| Saw blade bore | 1" |
| Saw blade diameter | 14" |
| Bevel positive stops | 0-45 |
| Cross cut capacity | 24" |
| Table Size | 35"x31" |
| Max. dado capacity | 1 1/2" |
| Max. Depth of cut -90 | 4 1/2" |
| Miter positive stops | 45-0-45 |
| Overall dimensions | 35"x46" |
| Ripping capacity | 32 5/16" |
| Shipping Weight Lbs. | 400 |
| Crated Dimensions | 48"x37"x35" |
