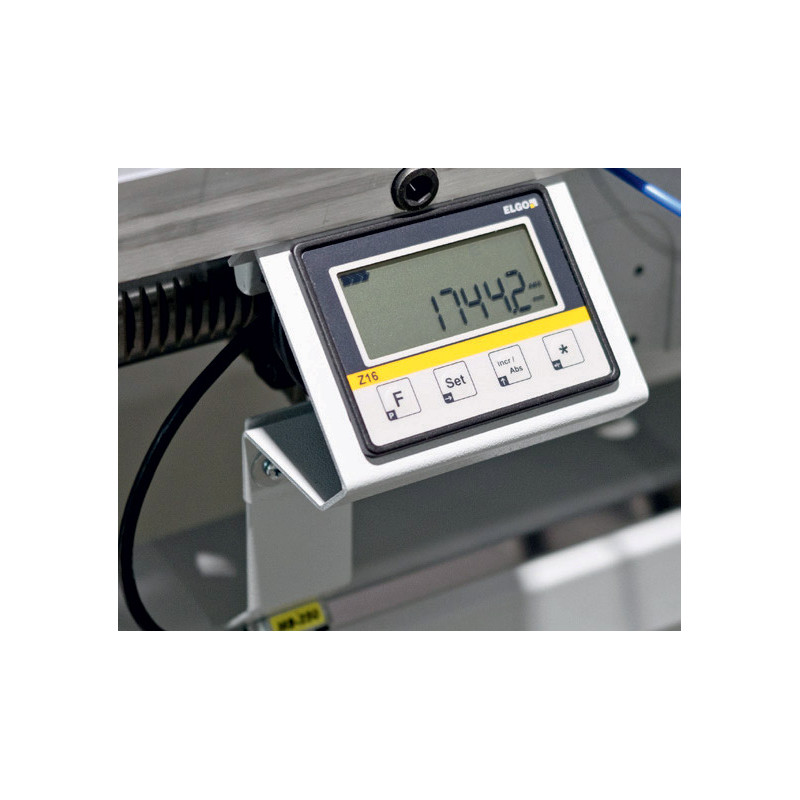

14" Double Mitre Chop Saw 3HP Motors Width Cutting Capacity 6 5/8" Thickness Capacity 4 1/8" Length Capacity 9'2" Complete with Digital Read-Out
This product is no longer in stock
Availability date:

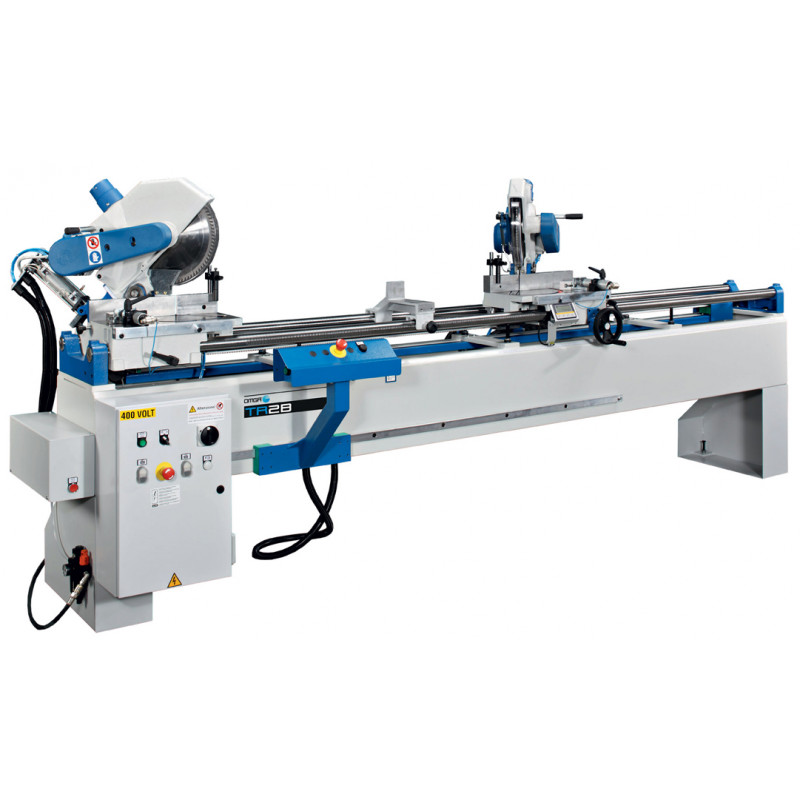

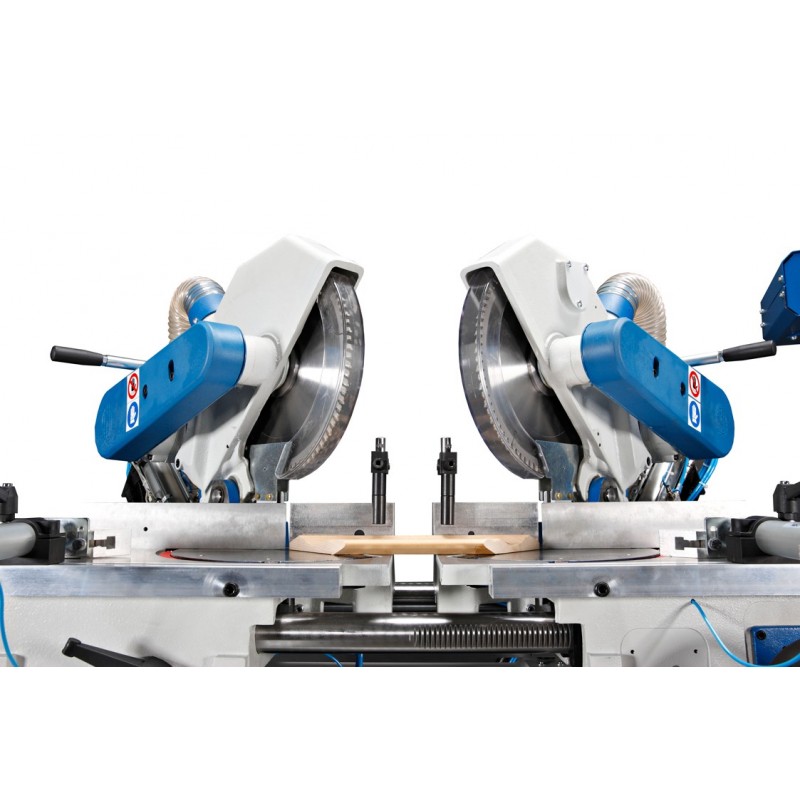

This 14" Double Mitre Saw is equipped with two heads one fixed on the left and one movable on the right, each having positive mitering stops at +45,-45 and 90 degrees. The machine is controlled by an electro-pneumatic system which enables the operator to select between three automatic working cycles: 1) Simultaneous cycling of both blades, 2)Alternate cycle allowing the machine to cut very short pieces at 45 degrees, 3) Single head cycling. The two standard pneumatic vertical clamps ensure the perfect stability of the workpiece. The unit also comes with standard overload protection on each of the two main motors. A wide variety of optional equipment is available for this system, such as additional vertical or horizontal pneumatic clamps, extended cutting length, brackets for short pieces, air over oil descent of the heads and spray mist system. The versatility of this unit makes it the perfect choice for any precision mitering application.
description | price | |
---|---|---|
Increased Cutting Length to 11'4" |
$2,548.00 |
|
Increased Cutting Length to 14'7" |
$4,698.00 |
|
Increased Cutting Length to 18' |
$9,837.00 |
|
Front Pneumatic Clamp |
$353.00 |
|
Spray Mist System |
$1,044.00 |
|
Increased Motors to 4HP (TR 2B) |
$1,390.00 |
TR 2B I INT VIS | TR 2B | TR 2A | TRF 527 | |
---|---|---|---|---|
Max. distance between saws | 9' 2" | 9' 2" | 9' 2" | 7'10" |
Min. distance between saws | 23 5/8" | 13 3/16" | 8 3/4" | 6 1/4" |
Min. distance between saws 45 Deg. | 23 5/8" | 18 1/8" or 9 7/16" (+ opt. + alt.) | 15 1/8" or 6 11/16" (+ opt. + alt.) | 6 1/4" |
Cross cut capacity 90 Deg. | 6 3/4" | 6 1/2" | 5 1/2" | 2 5/32" |
Cross cut capacity 45 Deg. | 4 1/2" | 4 1/2" | 4" | 1 9/16" |
Max. Depth of Cut | 4 1/4" | 4 1/4" | 3 1/2" | 1 9/16 |
Motor power | 2 X 4 HP | 2 x 3 HP | 2 x 3 HP | 2 X 1.5 HP |
Max. Beveled Cross Cut | 6 3/4" | N/A | N/A | N/A |
Saw bore | 1" | 1" | 1" | 30 mm |
Saw Diameter | 370 mm (15") | 14" | 12" | 8.5" (220 mm) |
Arbor speed RPM | 3200 | 3200 | 3200 | 3200 |
Dust Chute | 2 x 3 1/8" | 2 x 3 1/8" | 2 x 3 1/8" | 2 x 3 1/8" |
Approx. Shipping Weight Lbs. | 1,753 | 1,573 | 1,438 | 650 |
Crated Dimensions | 152" X 45" X 65" | 150" X 39" X 53" | 150" X 39" X 44" | 137" X 27" X 59" |
