OPTIMA 240

High speed automatic push fed saw for optimized cutting and defect removal.

More details

More info

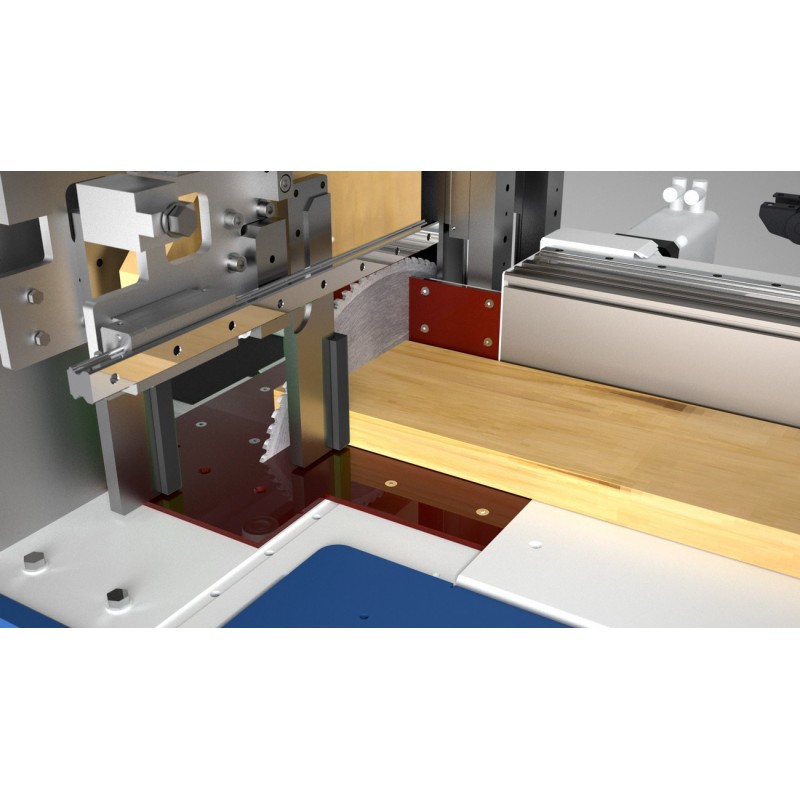

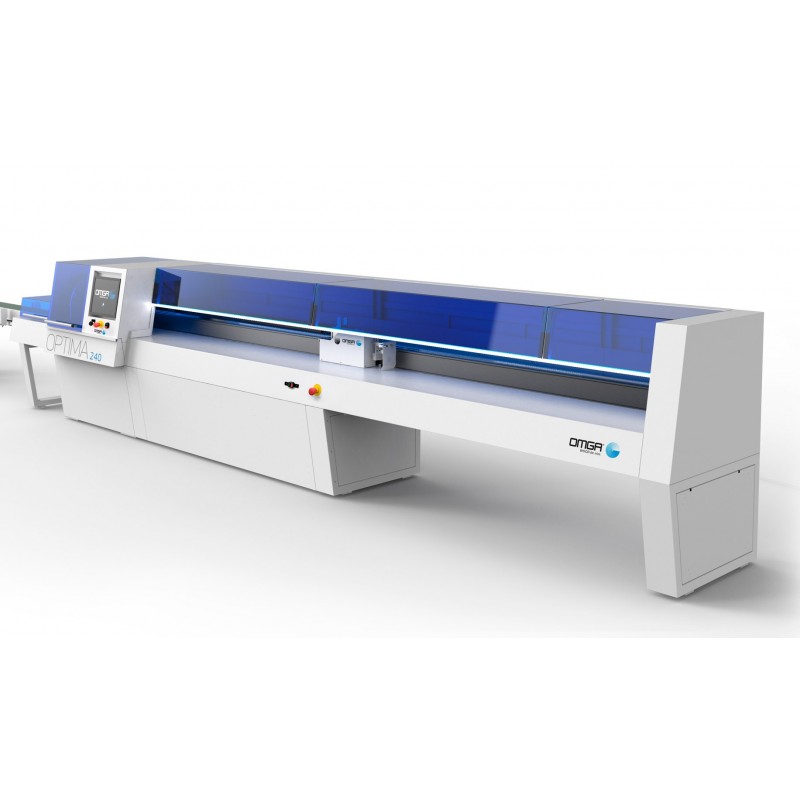

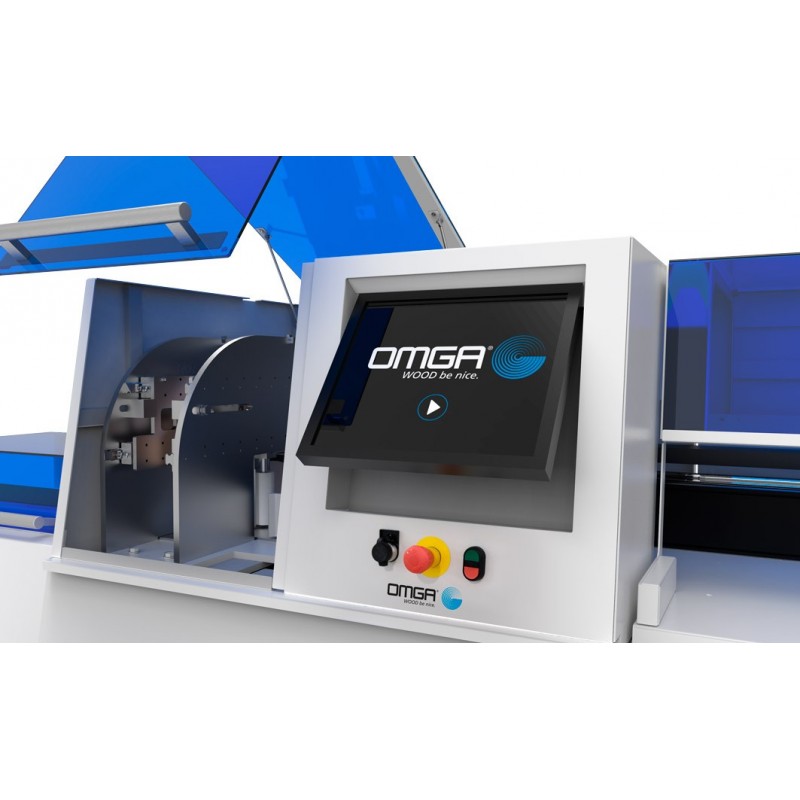

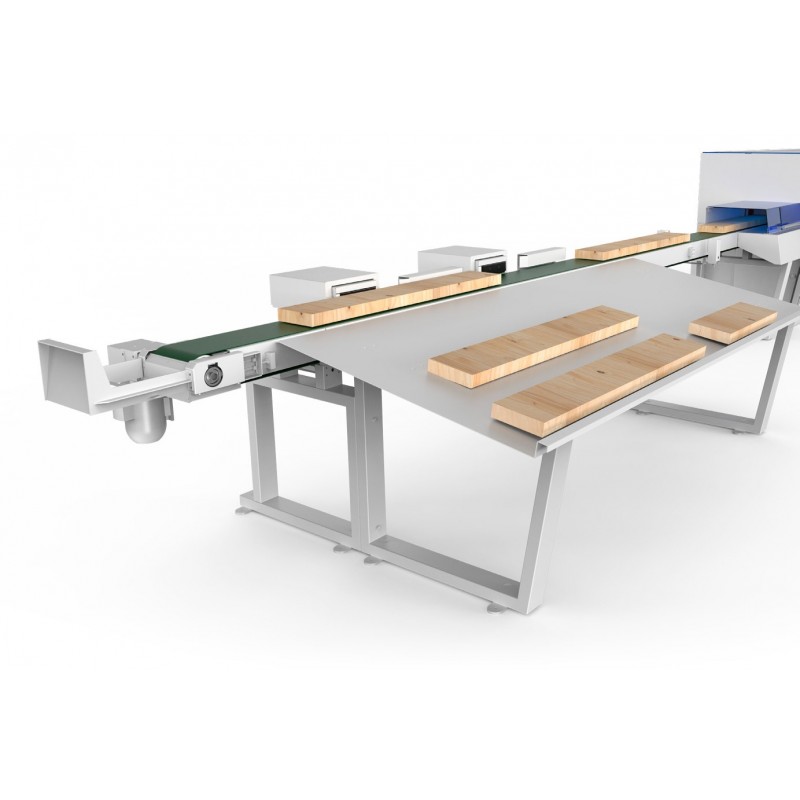

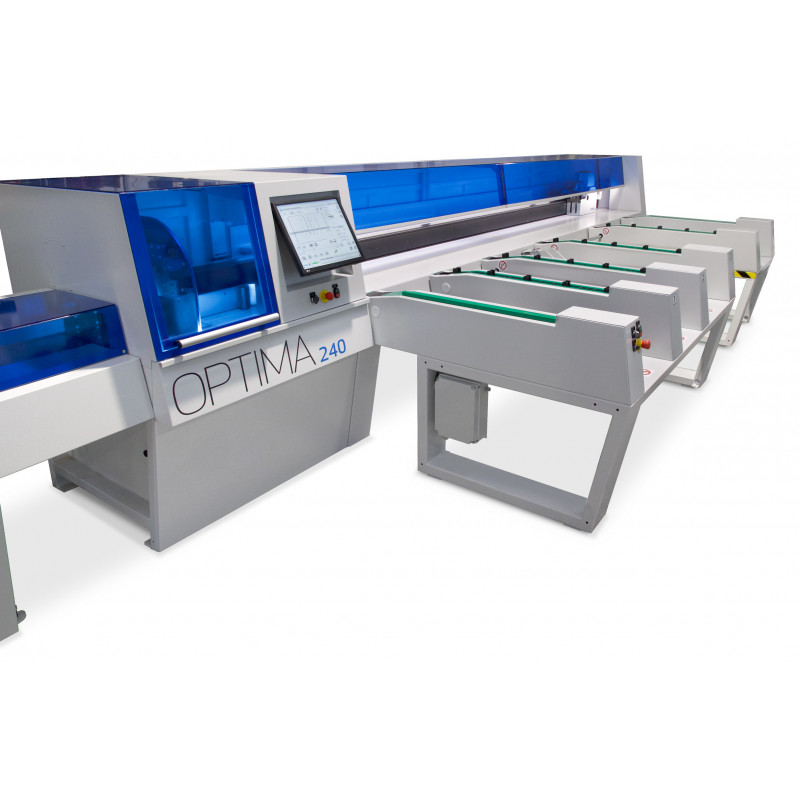

The OPTIMA 240 is a Push-Feed Optimizing and Defecting Cut- Off Saw, for high speed production. The last generation CNC, with Windows Embedded OS and connected to an adjustable 19" Touch Screen display, combines reliability, ease of use and always maintains the ergonomic position of the operator. The network connection is guaranteed by an available RJ45 Ethernet port and the software allows for reports on the ongoing production runs, to always be available on screen or through the network, without interrupting the process of the machine. The pusher system, rides on precision linear rails and bearings and, along with the pneumatic tail clamp and linear encoder, ensures very accurate positioning of the work piece (+/- 0.15 mm). The loading table, allows the operator to grade and prepare multiple boards which may be loaded in sequence, eliminating waste of time. The cutting area is fitted with a system of "intelligent" vertical and horizontal clamps, which automatically adapt to the dimension of the stock being processed, making the cutting cycle faster and ensuring the squareness of the cut pieces. The optimization software features a wide variety of available cutting programs and combinations, which make this system very versatile and ready to respond to the different needs of the industry. The OPTIMA 240 is available in 2 different configurations of maximum length of infeed boards, 4200 mm and 6200 mm. The system may be completed with a variety of optional equipment such as sorters with kickers, automatic loading systems, in-line high resolution ink-jet printer width sensor as well as custom executions, based on the needs of our customers.

Download literature

OPTIMA USA_10 low

Download (5.76M)

Data sheet

OPTIMA 240 OPTIMA 120 Elite OPTIMA 120 OPTIMA 60
Max. piece thickness 4" - 2" [KC] 4 5/16" 4 5/16" 4 5/16"
Max. piece width 12" - 7" [KC] 12" 12" 12"
Max. infeed length 13'9" or 20'4" 13'9" or 20'4" 13'9" or 20'4" 13'9" or 20'4"
Max. feed Speed 800 FPM 400 FPM 400 FPM 200 FPM
Saw blade motor power 7.5 HP 6 HP 6 HP 6 HP
Saw blade diameter 18" - 14" [KC] 18" (20" Opt) 18" (20" Opt) 18" (20" Opt)
Feed motor power 5.2 Nm (4 kW) 2.7 Nm (1.50 kW) 2.7 Nm (1.50 kW) 2.5 Nm (.75 kW)
Cutting Speed 0.2 - 1 sec. 0.4 - 1 sec. 0.4 - 1 sec. 0.5 - 1 sec.
Average number of cuts 50 min - 55 min [KC] 30 - 35 min. 25 - 35 min. 15 - 20 min.
