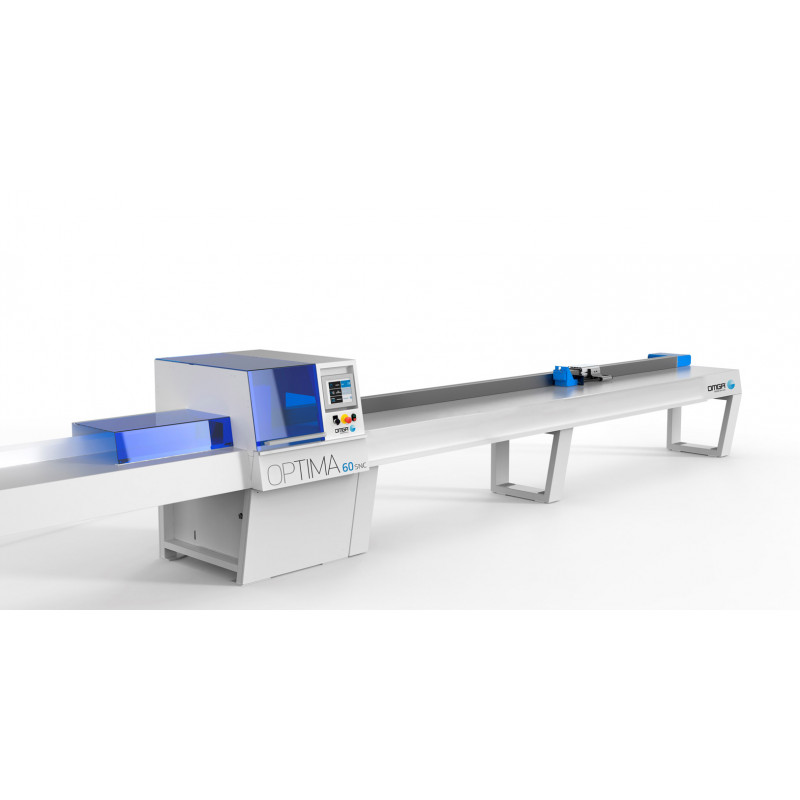

OPTIMA 60 SNC

Automatic push fed saw for optimized and pack cutting.

More details

More info

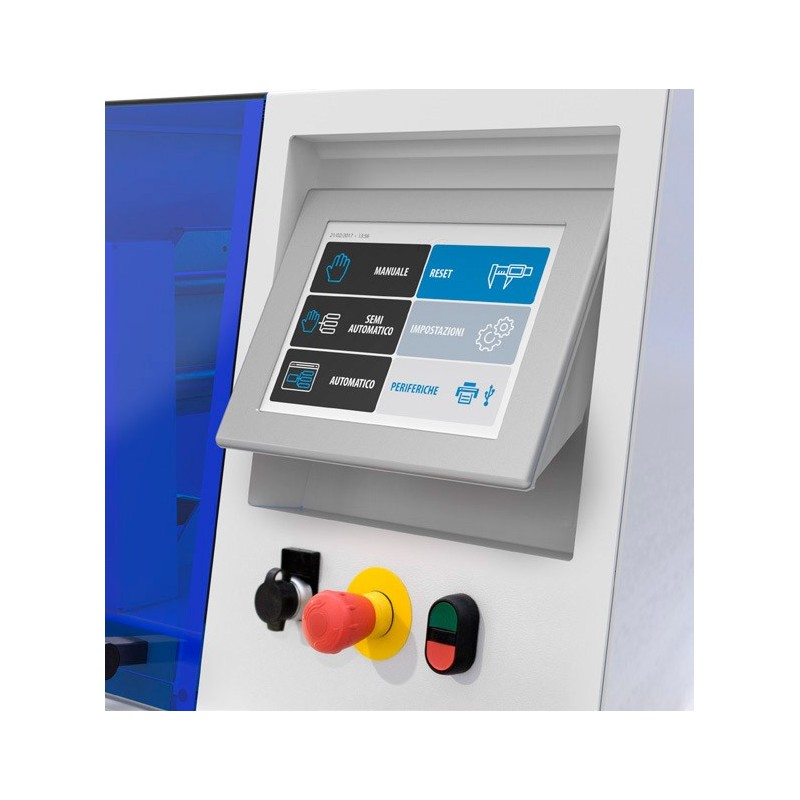

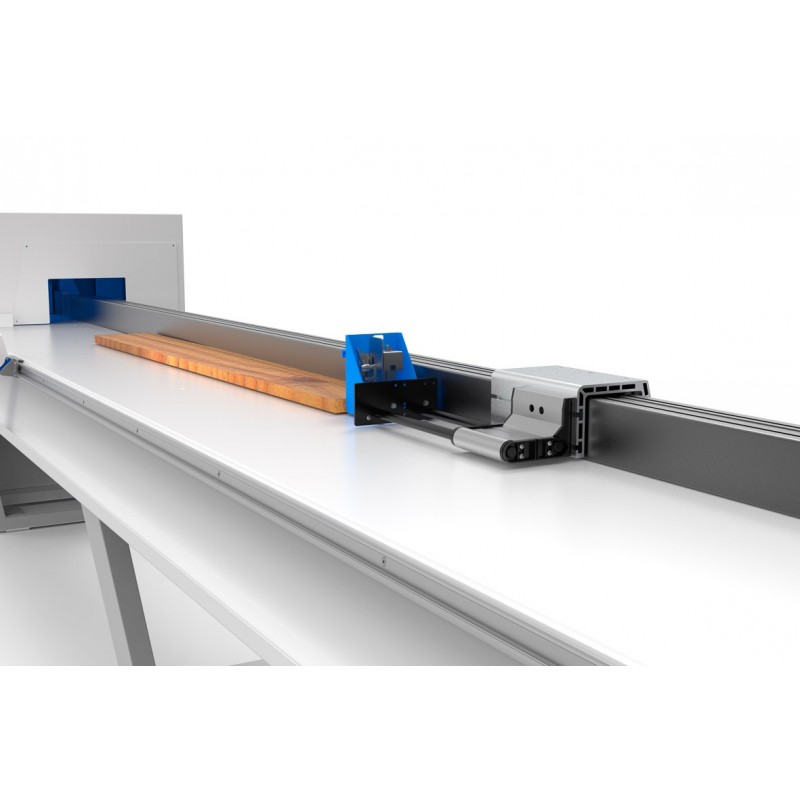

The OPTIMA 60 is a Push-Feed Optimizing and pack cutting Cut-Off Saw. It is fitted with the last generation CNC, with adjustable 10.4" Touch Screen display, combines reliability, ease of use and always maintains the ergonomic position of the operator. The pusher system may be fitted with a pneumatic tail clamp and linear encoder (Optional), which ensure very accurate positioning of the work piece (+/- 0.15 mm). The cutting area may be fitted with a system of horizontal clamps (Optional), ensuring the squareness of the cut pieces. The network connection is guaranteed by an available RJ45 Ethernet port and/or USB connection and the software allows for reports on the ongoing production runs, to always be available on screen or through the network, without interrupting the process of the machine. Capable of cutting jobs with step-down optimization of the different lengths present in the program or to process predetermined cutting patterns. This configuration is ideal for pack cutting.

Download literature

OPTIMA USA_10 low

Download (5.76M)

Data sheet

OPTIMA 60 SNC OPTIMA 120 SNC T 521 SNC
Max. piece thickness 4 5/16" 4 5/16" 4 1/2"
Max. piece width 12" 12" 12 5/8"
Max. infeed length 13'9" or 20'4" 13'9" or 20'4" 14' - 20'
Max. feed Speed 200 FPM 400 FPM 200 FPM
Saw blade motor power 6 HP 6 HP 6 HP
Saw blade diameter 18" (20" Opt) 18" (20" Opt) 18" (20" Opt)
Feed motor power 2.5 Nm (.75 kW) 2.7 Nm (1.50 kW) 2.5 Nm (.75 kW)
Cutting Speed 0.5 - 1 sec. 0.4 - 1 sec. 0.5 - 1 sec.
Average number of cuts 15 - 20 min. 25 - 35 min. 15 - 20 / min.
