T 521 SNC

Automatic push fed saw for sequenced cutting with 18" saw blade.

More details

More info

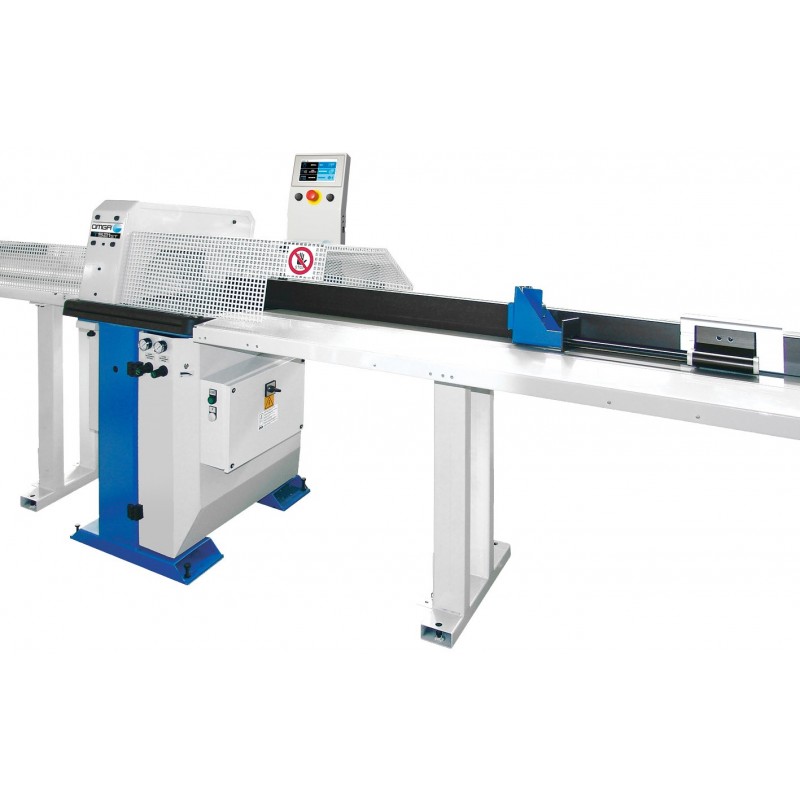

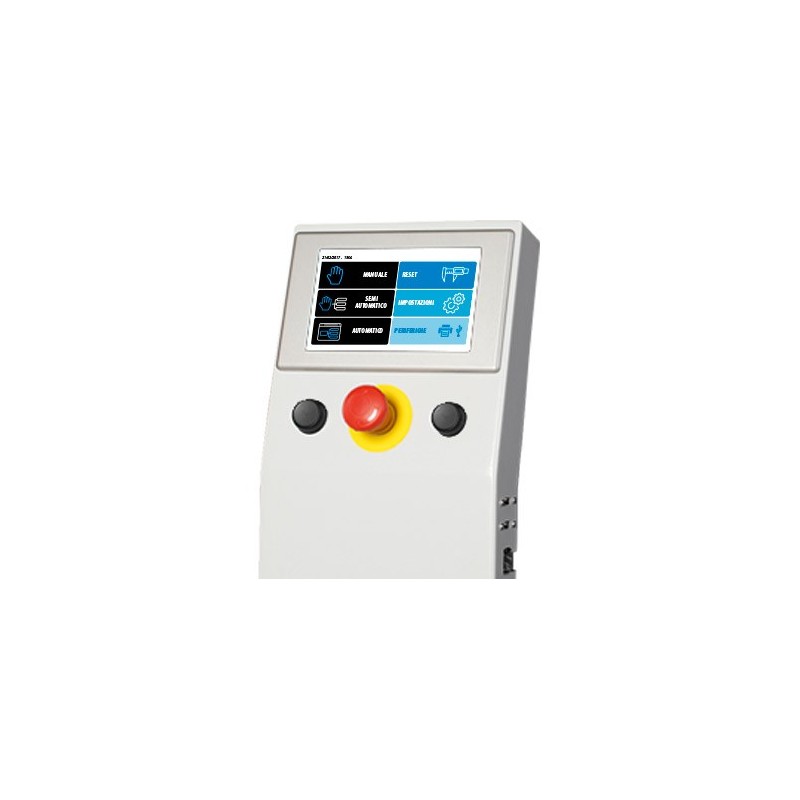

Last Generation automatic programmable cut-off saw for precision length cutting of wood stock. Suitable for any production requirement. The machine is equipped with a controller capable of performing two work cycle programs. The onboard computer is able to store cutting lists with lengths and the relevant quantity of parts. Cutting lists can be input direct for the NC keypad or with direct serial connection to a remote PC. The system is available in 13' or 20' useable lengths.

Download literature

T521ST_USA_01 low

Download (494.95k)

Data sheet

T 521 SNC OPTIMA 120 SNC OPTIMA 60 SNC
Max. piece thickness 4 1/2" 4 5/16" 4 5/16"
Max. piece width 12 5/8" 12" 12"
Max. infeed length 14' - 20' 13'9" or 20'4" 13'9" or 20'4"
Max. feed Speed 200 FPM 400 FPM 200 FPM
Saw blade motor power 6 HP 6 HP 6 HP
Saw blade diameter 18" (20" Opt) 18" (20" Opt) 18" (20" Opt)
Feed motor power 2.5 Nm (.75 kW) 2.7 Nm (1.50 kW) 2.5 Nm (.75 kW)
Cutting Speed 0.5 - 1 sec. 0.4 - 1 sec. 0.5 - 1 sec.
Average number of cuts 15 - 20 / min. 25 - 35 min. 15 - 20 min.
